O/D Analysis

Analysis Info & Status

Unless a report is accepted, opening it from the dashboard loads the Analysis Info & Status page instead of a visualization — the same page whether the report is queued, in progress, awaiting confirmation, was canceled, rejected, or failed with an error; only the Status section changes.

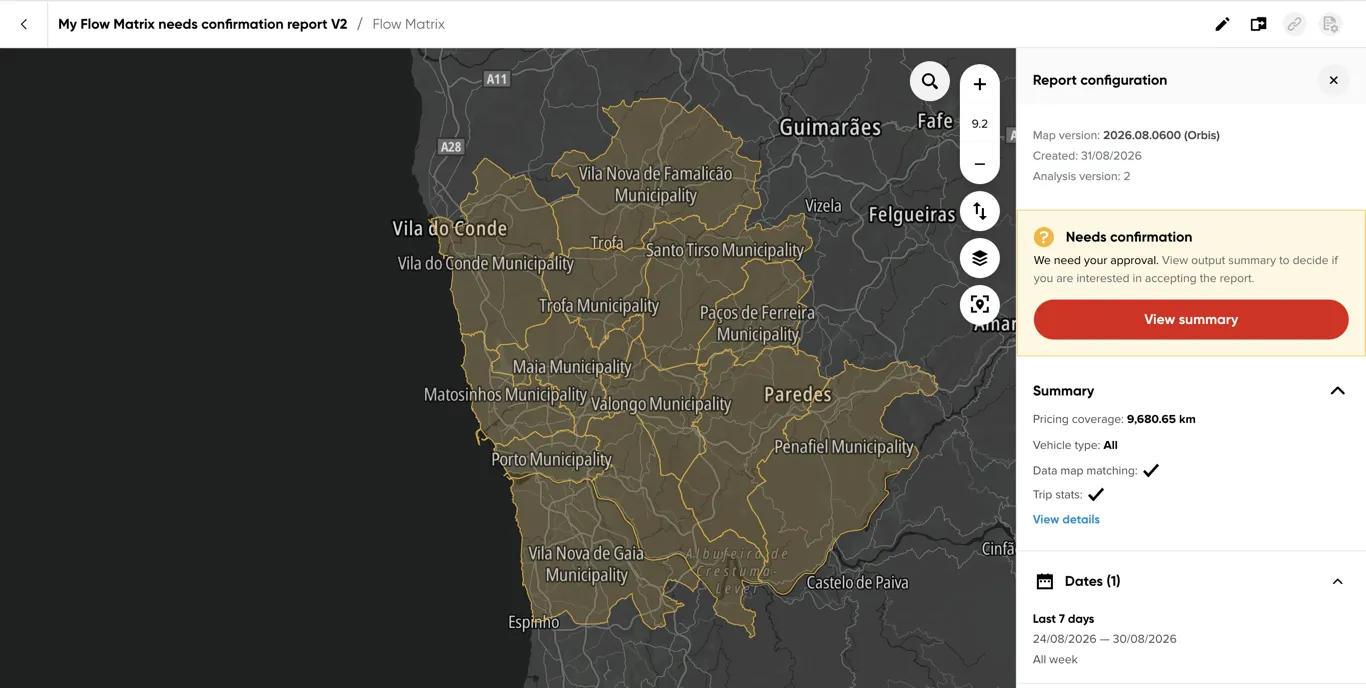

A Flow Matrix V2 report's Analysis Info & Status page, with its report configuration panel open
The Analysis Info & Status page

Top bar

See Viewing analysis results for details about the top bar and its actions.

Actions before acceptance

Share is disabled until the report is accepted. The Report configuration action is disabled for non-accepted reports because the configuration panel is already open.

Report configuration panel

Info

The map version used, the report’s creation date and its analysis version.

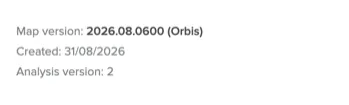

The Info section, showing the map version, creation date and analysis version
The Info section

Status

The report’s current status: queued, in progress, awaiting confirmation, canceled, rejected, or failed with an error.

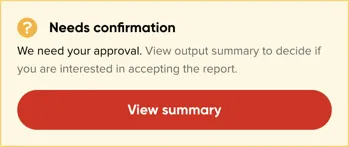

The Status section, showing the report is awaiting confirmation with a View summary button
The Status section

While awaiting confirmation, View summary opens a summary dialog with actions to accept or reject the report.

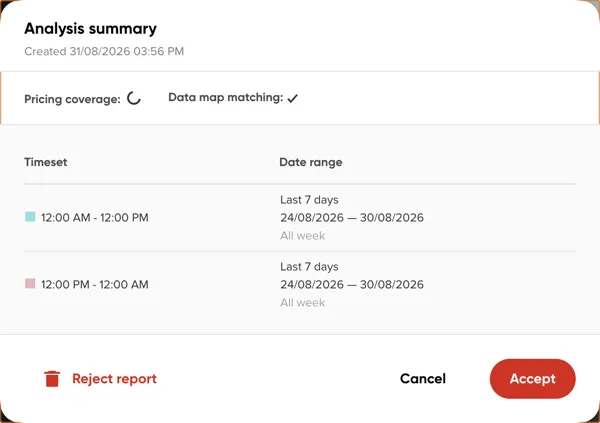

The summary dialog opened from the Status section, with actions to accept or reject the report
The Status section’s summary dialog

Summary

A summary of the results.

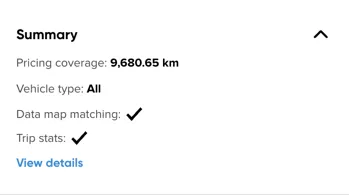

The Summary section, showing pricing coverage, data map matching and a View details link
The Summary section

View details opens the same dialog as Status, without the accept/reject actions — for any status other than awaiting confirmation, this is the only way to open it, since the Status section only offers View summary while the report is awaiting confirmation.

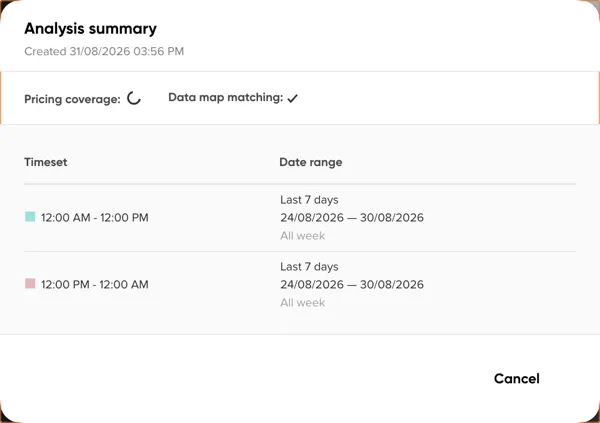

The summary dialog opened from the Summary section
The Summary section’s dialog

Dates

The date ranges the report was configured with. Expanded by default.

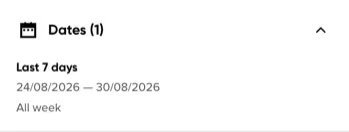

The expanded Dates section, listing the report's date ranges
The Dates section

Times

The time ranges the report was configured with. Expanded by default.

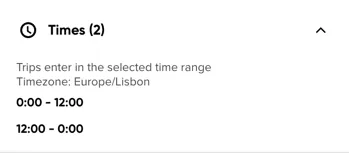

The expanded Times section, listing the report's time ranges
The Times section

Regions

Collapsed by default. Expand it to download the report’s regions as a GeoJSON file, or click Rename to open a dialog for renaming individual regions — clicking a region in its list turns its label into an editable input.

The expanded Regions section, with the region list and download option
The Regions section

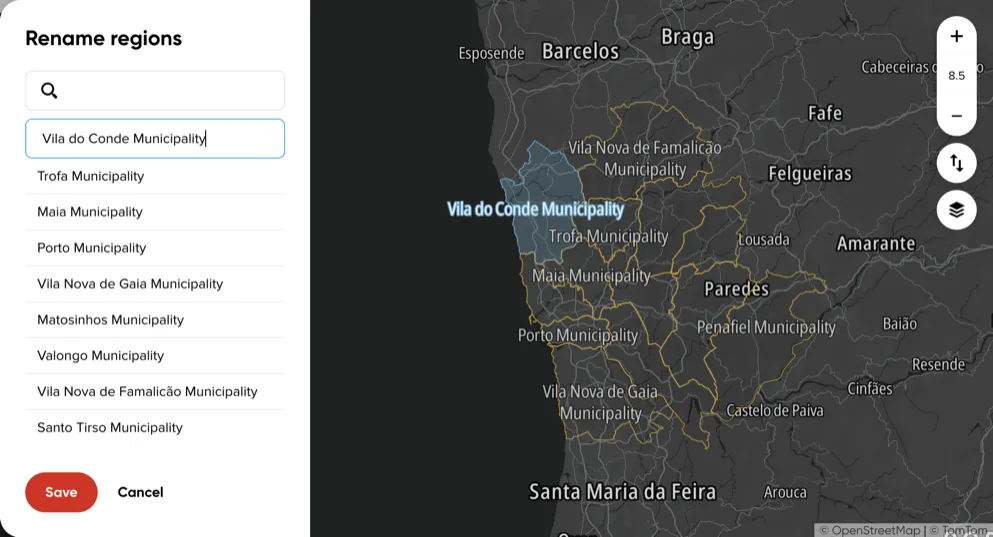

The Rename regions dialog, with one region's name turned into an editable input
Renaming a region

Map Area

Regions layer

The report’s region geometries are drawn on the map.

See Viewing analysis results for details about the map controls.
